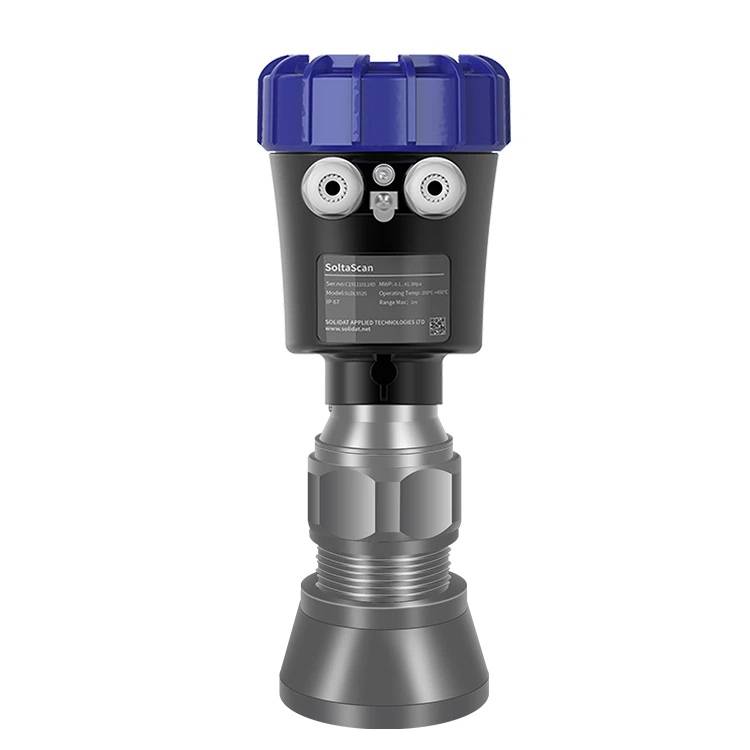

SLDL5195 High Temperature and High Pressure Radar Level Gauge
The SLDL5195 High Temperature and High Pressure Radar Level Gauge is an ultra‑high‑performance industrial level sensor built for extreme process conditions. Adopting advanced FMCW (Frequency Modulated Continuous Wave) radar technology, this high‑precision gauge delivers stable and accurate measurement even in high temperature, high pressure, heavy steam and high dust environments. As a top‑tier solution from Solidat Applied Technologies Ltd., the SLDL5195 High Temperature and High Pressure Radar Level Gauge provides non‑contact continuous level monitoring for liquids and solids, supporting safe and efficient operation in petrochemical, oil and gas, power generation and wastewater treatment industries.
Working Principle of SLDL5195 High Temperature and High Pressure Radar Level Gauge
The SLDL5195 High Temperature and High Pressure Radar Level Gauge operates on FMCW technology, transmitting linear frequency modulation signals in the working frequency band. It calculates the material distance by comparing the frequency difference between the transmitted and reflected signals. This principle ensures fast response, high precision and strong anti‑interference ability. The product includes two high‑frequency versions: SLDL5180 (78–80GHz) and SLDL5190 (120–128GHz). The narrow beam angle and strong penetration of the SLDL5195 High Temperature and High Pressure Radar Level Gauge make it ideal for complex tanks, long nozzles and ball valve installations.
Key Features of SLDL5195 High Temperature and High Pressure Radar Level Gauge
The SLDL5195 High Temperature and High Pressure Radar Level Gauge provides industry‑leading performance:
• Ultra‑narrow beam: 1° for SLDL5180, 0.7° for SLDL5190
• High precision: up to 1mm for SLDL5180, 0.5mm for SLDL5190
• Patented SoltaFMScan signal processing, single measurement in 5ms
• Strong penetration for high steam and high dust applications
• Supports long nozzle and ball valve installation
• One‑click false echo learning and intelligent interference suppression
• Simple setup: only 2 parameters required for measurement
• No need to fill or empty the tank during commissioning
• Multi‑language display with real echo and false echo visualization
• Measurements unaffected by medium, temperature, pressure or dust
• Multiple protocols: HART, Modbus, Profibus PA, Foundation Fieldbus, Bluetooth, GPRS/CDMA
These features make the SLDL5195 High Temperature and High Pressure Radar Level Gauge highly reliable in the harshest working conditions.
Advantages of SLDL5195 High Temperature and High Pressure Radar Level Gauge
The SLDL5195 High Temperature and High Pressure Radar Level Gauge offers clear advantages over traditional level gauges:
• Petrochemical and chemical processing
• Oil and gas production and refining
• Power plant boiler and high‑temperature tanks
• Wastewater treatment facilities
• Metallurgical and high‑dust material warehouses
• Various high‑temperature, high‑pressure, high‑steam storage vessels
In all these scenarios, the SLDL5195 High Temperature and High Pressure Radar Level Gauge maintains stable measurement and ensures production safety.

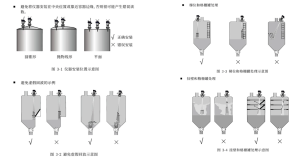

Installation Guidelines
Correct installation is essential for the performance of the SLDL5195 High Temperature and High Pressure Radar Level Gauge. Avoid mounting near the tank center or edge to prevent false echoes. Keep the beam away from ladders, gratings and internal obstacles. For conical and parabolic tanks, install at a reasonable position to ensure full‑range measurement. Proper installation greatly improves accuracy and stability.
As a professional high-temperature and high-pressure radar level gauge, the SLDL5195 provides stable and continuous operation in harsh industrial environments. Its robust structure, excellent sealing performance and strong anti-interference capacity ensure long-term stable operation without frequent calibration or maintenance. It effectively reduces labor costs, improves production safety, and helps enterprises achieve intelligent monitoring and automated management of material levels, bringing long-term value and efficiency to industrial process operations.
Why Choose SLDL5195 High Temperature and High Pressure Radar Level Gauge
The SLDL5195 High Temperature and High Pressure Radar Level Gauge combines ultra‑high frequency, narrow beam, high precision and strong environmental adaptability. It solves measurement challenges in extreme conditions that conventional sensors cannot handle. Solidat Applied Technologies Ltd. is a leading manufacturer and supplier of the SLDL5195 High Temperature and High Pressure Radar Level Gauge in China, providing stock products, customization, factory pricing and professional support. For reliable level measurement in harsh environments, the SLDL5195 High Temperature and High Pressure Radar Level Gauge is your best choice.
