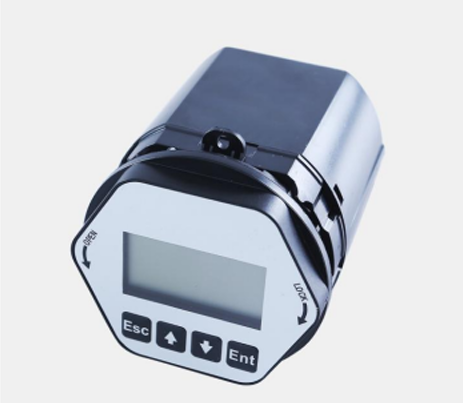

FLDM01 80GHz Radar Distance Measurement Module: High-Precision Industrial Sensing Solution

We are proud to introduce the FLDM01 80GHz Radar Distance Measurement Module, a cutting-edge industrial sensing device co-developed by Fulinton and Tsinghua University team, based on domestic millimeter-wave chips. As a core component for industrial measurement, the FLDM01 80GHz Radar Distance Measurement Module delivers high-precision, reliable distance, level and material level detection for a wide range of industrial applications.

Product Overview of FLDM01 80GHz Radar Distance Measurement Module

The FLDM01 80GHz Radar Distance Measurement Module is a state-of-the-art industrial distance measurement solution built on domestic millimeter-wave chips. The FLDM01 80GHz Radar Distance Measurement Module is equipped with backlight LCD debugging function, Bluetooth debugging capability, remote commissioning and remote OTA (Over-the-Air) update functions, and supports deep customization to meet specific project requirements. This makes the FLDM01 80GHz Radar Distance Measurement Module a flexible and future-proof choice for industrial automation systems.

Key Features of FLDM01 80GHz Radar Distance Measurement Module

Wide Measurement Range

The FLDM01 80GHz Radar Distance Measurement Module offers multiple measurement ranges to accommodate various tank and silo sizes: M1-10m, M2-20m, M3-30m, M6-60m, and MB-120m. This wide range adaptability makes the FLDM01 80GHz Radar Distance Measurement Module suitable for small process tanks and large storage silos.

Remote Maintenance & OTA Upgrade

The FLDM01 80GHz Radar Distance Measurement Module supports full remote maintenance, OTA updates, remote access, radar management and remote firmware upgrades. This feature significantly reduces on-site maintenance costs and downtime for the FLDM01 80GHz Radar Distance Measurement Module, improving operational efficiency in industrial facilities.

Rich Industrial Communication Interfaces

Our FLDM01 80GHz Radar Distance Measurement Module is equipped with comprehensive physical interfaces, including 4~20mA (optional 2-channel), HART, AUTBUS, Fieldbus Foundation, Profibus PA, and NB-IoT. This extensive connectivity ensures seamless integration with existing industrial control systems, maximizing the efficiency of the FLDM01 80GHz Radar Distance Measurement Module in automated production lines.

Intelligent Debugging & Display

The FLDM01 80GHz Radar Distance Measurement Module supports Bluetooth wireless debugging function, allowing for convenient on-site configuration and real-time monitoring. It also features a backlight display that provides clear and easy-to-read measurements even in low-light environments, significantly enhancing the user-friendliness of the FLDM01 80GHz Radar Distance Measurement Module.

High Adaptability to Media & Harsh Environments

The FLDM01 80GHz Radar Distance Measurement Module excels in tank bottom reflection measurement for media with low dielectric constants (less than 1.5). It performs reliably in harsh working conditions such as agitation, steam, dust, and crystallization, making the FLDM01 80GHz Radar Distance Measurement Module ideal for the most challenging industrial environments.

Technical Specifications of FLDM01 80GHz Radar Distance Measurement Module

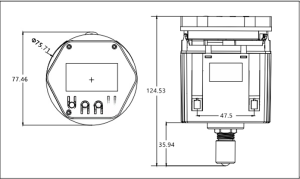

Product Dimensions of FLDM01 80GHz Radar Distance Measurement Module

The FLDM01 80GHz Radar Distance Measurement Module features a compact, robust design with precise dimensional specifications:

• Overall Height: 124.53mm

• Width: 77.46mm

• Diameter: Ø75.71mm

• Process Connection Height: 35.94mm

The compact design of the FLDM01 80GHz Radar Distance Measurement Module ensures easy integration into various industrial devices and systems.

Product Selection Guide for FLDM01 80GHz Radar Distance Measurement Module

Basic Model

• FLDM01: 80G Radar Electronic Core

Measurement Range

Power & Output

Bluetooth Output

Applications of FLDM01 80GHz Radar Distance Measurement Module

The FLDM01 80GHz Radar Distance Measurement Module is widely applied in key industrial sectors for high-precision level and material level measurement:

• Liquid Level Measurement: The FLDM01 80GHz Radar Distance Measurement Module provides accurate level monitoring for water tanks, chemical storage tanks, and process vessels.

• Solid Material Level Measurement: The FLDM01 80GHz Radar Distance Measurement Module ensures reliable level detection for silos, bins, and bulk material storage systems.

• Industrial Automation: The FLDM01 80GHz Radar Distance Measurement Module serves as a core sensing component in automated production lines, conveyor systems, and smart factories.

Why Choose FLDM01 80GHz Radar Distance Measurement Module?

The FLDM01 80GHz Radar Distance Measurement Module stands out with its high precision, wide applicability, and advanced remote management capabilities. Co-developed with Tsinghua University and built on domestic millimeter-wave chips, the FLDM01 80GHz Radar Distance Measurement Module combines cutting-edge technology with user-friendly design, offering accurate and stable measurement for all your industrial sensing needs. Whether you are integrating it into a new level meter system or upgrading existing equipment, the FLDM01 80GHz Radar Distance Measurement Module is the reliable, cost-effective solution you can trust.
