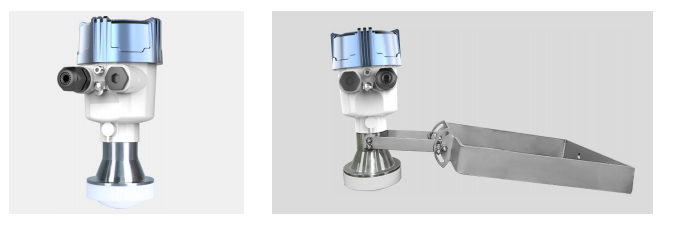

FLT9200M2 Radar Level Meter: Hygienic High-Precision Solid Level Measurement Solution

We are proud to introduce the FLT9200M2 Radar Level Meter, a premium industrial measurement device engineered for accurate, non-contact solid level monitoring in hygienic and sensitive industrial environments. As a specialized model in the FLT9200 series, the FLT9200M2 Radar Level Meter combines high-frequency radar technology with sanitary design, making it the ultimate choice for food, pharmaceutical and new material processing industries.

Product Overview of FLT9200M2 Radar Level Meter

The FLT9200M2 Radar Level Meter series features customizable radar modules with selectable 78G and 120GHz frequency bands, enabling the FLT9200M2 Radar Level Meter to deliver precise distance, level and volume measurement for a wide range of solid materials. The FLT9200M2 Radar Level Meter supports deep customization of hardware modules, embedded software and structural design, ensuring it can be tailored to meet specific hygienic and process requirements.

Key Features of FLT9200M2 Radar Level Meter

High-Frequency Radar Technology

The FLT9200M2 Radar Level Meter offers two optional high-frequency bands: 76~81GHz and 119~125GHz. This advanced frequency configuration ensures the FLT9200M2 Radar Level Meter delivers stable, high-precision readings even in dusty, high-humidity and agitated process conditions.

Remote Maintenance & OTA Upgrade

The FLT9200M2 Radar Level Meter supports full remote maintenance, OTA (Over-the-Air) updates, remote access, radar management and remote firmware upgrades. This feature significantly reduces on-site maintenance costs and downtime for the FLT9200M2 Radar Level Meter, improving operational efficiency in hygienic production facilities.

Rich Industrial Communication Interfaces

Our FLT9200M2 Radar Level Meter is equipped with comprehensive physical interfaces, including 4~20mA (optional 2-channel), HART, AUTBUS, Fieldbus Foundation, ProfibusPA and NB-IoT. This extensive connectivity ensures seamless integration with existing industrial control systems, maximizing the efficiency of the FLT9200M2 Radar Level Meter in automated production lines.

Bluetooth Debugging & User-Friendly Operation

The FLT9200M2 Radar Level Meter supports Bluetooth wireless debugging, allowing for convenient on-site configuration and real-time monitoring without opening the enclosure. This design preserves the hygienic integrity of the FLT9200M2 Radar Level Meter while simplifying maintenance.

Low Dielectric Constant & Harsh Environment Adaptability

The FLT9200M2 Radar Level Meter excels in tank bottom reflection measurement for media with low dielectric constants (less than 1.5). It performs reliably in harsh working conditions including agitation, steam, dust and crystallization, making the FLT9200M2 Radar Level Meter ideal for demanding hygienic industrial environments.

Technical Specifications of FLT9200M2 Radar Level Meter

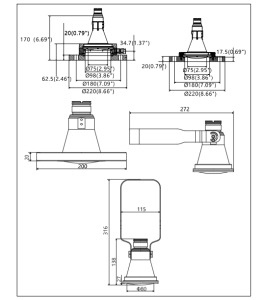

Product Dimensions of FLT9200M2 Radar Level Meter

The FLT9200M2 Radar Level Meter is available with a range of suspended (hanging) radar antenna kits, each with precise dimensional specifications for hygienic installation:

•Flange Mount Antenna Kit: Overall height 170mm (6.69″), flange diameter Ø220mm (8.66″)

• Compact Flange Kit: Overall height 34.7mm (1.37″), flange diameter Ø220mm (8.66″)

• Extended Suspension Kit: Overall length 272mm, designed for overhead silo mounting

• Hygienic Housing Kit: Overall height 316mm (12.44″), housing diameter Ø90mm (3.54″)

All FLT9200M2 Radar Level Meter antenna kits are designed for easy cleaning and compliance with food and pharmaceutical industry hygiene standards.

Applications of FLT9200M2 Radar Level Meter

The FLT9200M2 Radar Level Meter is specifically designed for hygienic and sensitive industrial applications, delivering reliable performance in:

•Food & Grain Processing: The FLT9200M2 Radar Level Meter provides accurate level monitoring for grain silos, food storage tanks and powder processing facilities.

• Pharmaceutical Industry: The hygienic design of the FLT9200M2 Radar Level Meter ensures contamination-free measurement for API storage, raw material silos and cleanroom environments.

• New Material Industry: The FLT9200M2 Radar Level Meter delivers precise inventory management for advanced materials, chemical powders and specialty compound storage.

Why Choose FLT9200M2 Radar Level Meter?

The FLT9200M2 Radar Level Meter stands out with its hygienic design, high-frequency radar technology and remote management capabilities. It combines precision measurement with user-friendly operation, making it the trusted solution for hygienic solid level monitoring. Whether you operate a food processing plant, pharmaceutical facility or new material production line, the FLT9200M2 Radar Level Meter ensures accurate, reliable and compliant level measurement to optimize your operations.
