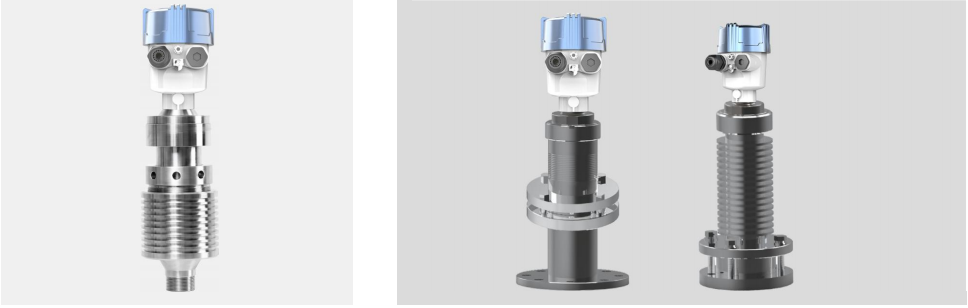

FLT9200M3 Radar Level Meter: High-Temperature High-Precision Solid Level Measurement Solution

We are proud to introduce the FLT9200M3 Radar Level Meter, a heavy-duty industrial measurement device expertly engineered to withstand extreme high-temperature and high-pressure conditions while delivering unparalleled accuracy for solid material level monitoring. As the high-temperature specialized model in the FLT9200 series, the FLT9200M3 Radar Level Meter combines advanced high-frequency radar technology with robust thermal insulation design, making it the ultimate choice for furnaces, blast furnaces, and high-heat industrial environments.

Product Overview of FLT9200M3 Radar Level Meter

The FLT9200M3 Radar Level Meter series features highly customizable radar modules with selectable 78G and 120GHz frequency bands, empowering the FLT9200M3 Radar Level Meter to achieve precise distance, level, and volume measurement for a diverse range of solid media. The FLT9200M3 Radar Level Meter supports deep customization of its hardware modules, embedded software, and structural design, ensuring it can be tailored to meet the stringent requirements of high-temperature, high-pressure industrial processes.

Key Features of FLT9200M3 Radar Level Meter

High-Frequency Radar Flexibility

The FLT9200M3 Radar Level Meter offers two optional high-frequency bands: 76~81GHz and 119~125GHz. This advanced frequency configuration ensures the FLT9200M3 Radar Level Meter delivers stable, high-precision readings even in dense smoke, high-humidity, and agitated high-temperature conditions.

Extreme High-Temperature Resistance

The FLT9200M3 Radar Level Meter is specifically designed to operate reliably under extreme thermal stress. It supports high-temperature operation up to 750°C (300~750°C flange mounting) and resists thermal shock, making it ideal for molten salt tanks, blast furnaces, and dry quenching coke systems where temperature fluctuations are severe.

Advanced Remote Management & OTA Upgrade

The FLT9200M3 Radar Level Meter supports full remote maintenance, OTA (Over-the-Air) updates, remote access, radar management, and remote firmware upgrades. This feature significantly reduces on-site maintenance risks and costs associated with high-temperature environments, improving operational safety and efficiency.

Rich Industrial Communication Interfaces

Our FLT9200M3 Radar Level Meter is equipped with a comprehensive set of physical interfaces, including 4~20mA (optional 2-channel), HART, AUTBUS, Fieldbus Foundation, ProfibusPA, and NB-IoT. This extensive connectivity ensures seamless integration with existing industrial control systems, maximizing the efficiency of the FLT9200M3 Radar Level Meter in automated high-temperature production lines.

Bluetooth Debugging & Harsh Environment Adaptability

The FLT9200M3 Radar Level Meter supports Bluetooth wireless debugging, allowing for convenient on-site configuration and real-time monitoring without exposing personnel to extreme heat. It excels in tank bottom reflection measurement for media with low dielectric constants (less than 1.5) and performs reliably in agitation, steam, dust, and high-pressure environments, making the FLT9200M3 Radar Level Meter the ultimate solution for demanding industrial settings.

Technical Specifications of FLT9200M3 Radar Level Meter

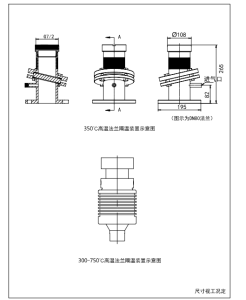

Product Dimensions of FLT9200M3 Radar Level Meter

The FLT9200M3 Radar Level Meter is equipped with a specialized high-temperature radar antenna kit, designed for easy and safe installation under extreme conditions:

•High-Temperature Flange Mount Kit (350°C): Features a compact Ø108mm (Ø4.25″) flange design for standard mounting.

• High-Temperature Flange Kit (300~750°C): Dimensions optimized for overhead suspension in ultra-high temperature furnaces, ensuring thermal insulation and measurement stability.All FLT9200M3 Radar Level Meter antenna kits are engineered to resist high temperatures and ensure reliable performance in heavy-duty industrial applications.

Applications of FLT9200M3 Radar Level Meter

The FLT9200M3 Radar Level Meter is specifically engineered for extreme high-temperature and high-pressure industrial environments, delivering exceptional performance in:

• Metallurgical Industry: The FLT9200M3 Radar Level Meter provides precise level monitoring for blast furnaces, electric furnaces, and molten salt storage tanks in steel production facilities.

• Energy & Power Industry: The FLT9200M3 Radar Level Meter ensures accurate inventory management for biomass furnaces, thermal power plants, and coal gasification systems.

• Coking & Chemical Industry: The FLT9200M3 Radar Level Meter offers reliable measurement for dry quenching coke bins, high-temperature reaction tanks, and special chemical processing vessels.

Why Choose FLT9200M3 Radar Level Meter?

The FLT9200M3 Radar Level Meter stands out with its exceptional high-temperature resistance, robust design, and remote management capabilities. It combines cutting-edge radar technology with user-friendly features, offering accurate, safe, and stable measurement for all your high-temperature industrial needs. Whether you operate a steel plant, power station, or chemical refinery, the FLT9200M3 Radar Level Meter is the reliable, high-efficiency solution you can trust to optimize your process safety and efficiency.
