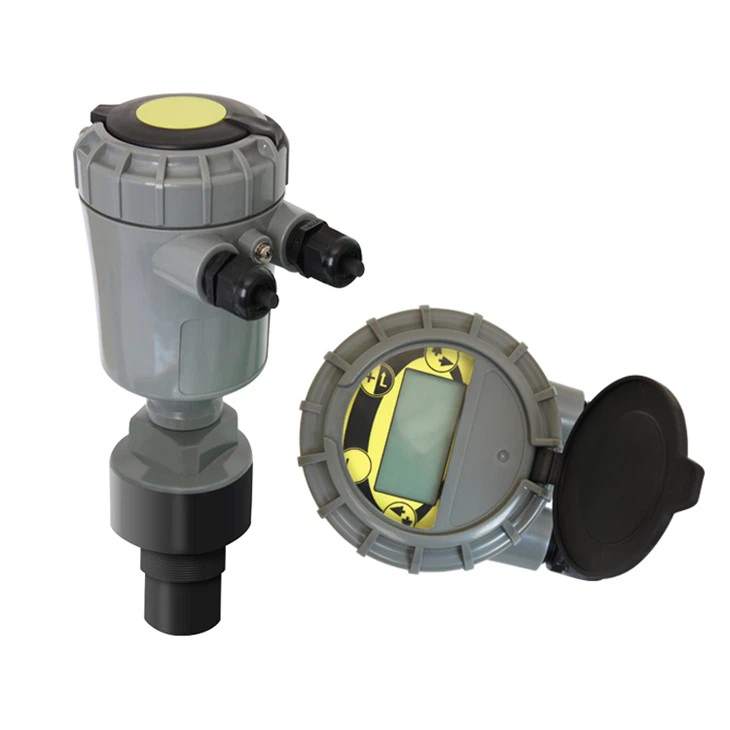

Gauger485 Ultrasonic Level Sensor With Digital Output

Gauger485 ultrasonic level sensor with digital output is a high-performance industrial level measurement solution designed for applications that require stable data communication with external digital devices. It uses a standard digital RS485 interface to achieve reliable and accurate data transmission, making it widely used in liquid level, solid level, open channel flow and volume measurement scenarios in various industrial fields.

What is Gauger485 Ultrasonic Level Sensor With Digital Output

Gauger485 ultrasonic level sensor with digital output is a continuous non-contact ultrasonic level meter that provides real-time distance, level, volume, flow and temperature data through a digital communication interface. It can connect with radio modems, GPS receivers, WiFi converters, relay controllers and computing devices to achieve remote monitoring and automatic control. Compared with traditional 4-20mA analog sensors, this digital output model has higher anti-interference ability, more stable data transmission and more convenient configuration and maintenance.

Key Features of Gauger485 Ultrasonic Level Sensor With Digital Output

Digital Communication Interface

Gauger485 ultrasonic level sensor with digital output adopts standard RS485 digital input and output, which can realize long-distance and stable data transmission. It can communicate with a variety of external digital equipment and can also realize mutual communication between multiple sensors for differential level measurement and multi-tank measurement. Users can directly view real-time data through a PC without installing professional software, which greatly reduces the difficulty of use and configuration.

High Protection and Stable Performance

This sensor uses a PVDF material probe with strong chemical resistance and a PC/ABS+UV UV-resistant shell. The whole machine reaches IP68 protection level and can work normally in harsh environments such as rain, dust and snow. The operating temperature range is -30°C to +70°C, which can meet the needs of most indoor and outdoor industrial applications. Non-contact design without moving parts ensures long service life and extremely low maintenance cost.

High Precision and Fast Response

Gauger485 ultrasonic level sensor with digital output has a measuring range of up to 8 meters for liquids and 5 meters for solids. It has a small blind zone of only 15 cm and a high tracking speed of up to 10 meters per minute. The built-in dual temperature sensors provide automatic temperature compensation to ensure stable and accurate measurement data under changing environmental conditions. Advanced algorithms effectively suppress noise, target fluctuation and gas interference.

Applications of Gauger485 Ultrasonic Level Sensor With Digital Output

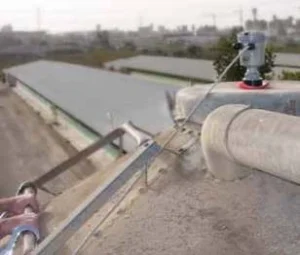

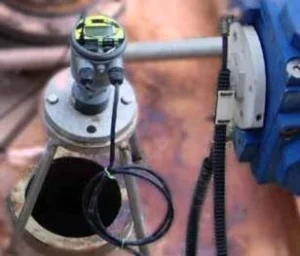

Gauger485 ultrasonic level sensor with digital output is widely used in petrochemical, chemical, food, agriculture, water treatment and wastewater industries. It can realize reliable level measurement for various liquids and solids such as grains, and can also be used for open channel flow measurement. It is suitable for storage tanks, process tanks, outdoor stockpiles and various industrial occasions that require digital communication and remote monitoring.
