GaugerBAT Battery Pack and PTS Programmable Timer Switch Barrier

GaugerBAT Battery Pack and PTS Programmable Timer Switch Barrier is a professional intrinsic safe power solution specially designed for hazardous explosive atmosphere environments. This combined power supply system provides stable and safe power support for field devices where external power is unavailable, and is widely used for low-power operation and intrinsic safe protection of GaugerGSM wireless level sensors. With ATEX/IECEx certification, it ensures reliable and secure power supply in explosive gas locations, meeting strict industrial safety standards.

Product Introduction of GaugerBAT Battery Pack and PTS Programmable Timer Switch Barrier

GaugerBAT Battery Pack and PTS Programmable Timer Switch Barrier is developed and produced by Solidat Applied Technologies Ltd., a leading manufacturer of industrial sensor accessories in China. We provide high-quality intrinsic safe battery solutions with sufficient stock and professional customized services to meet the power supply needs of various hazardous environments. Global customers are welcome to contact us for factory direct quotations, enjoying reliable technical support and cost-effective prices.

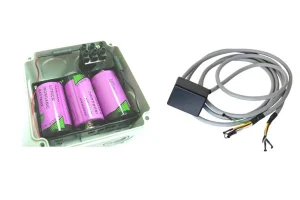

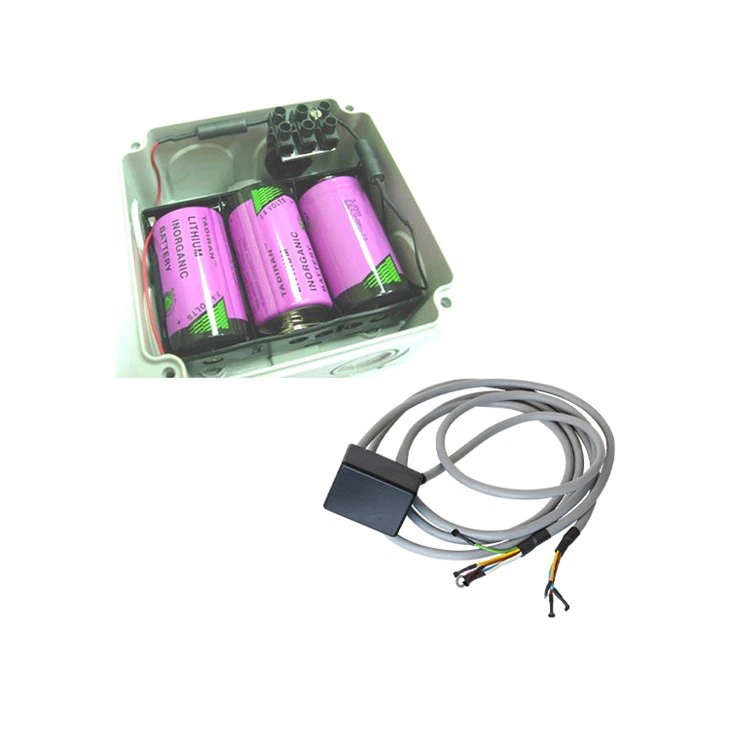

The system consists of two core components: a GaugerBAT battery compartment and a PTS programmable timer switch/barrier. The battery compartment can hold 3 or 4 LiSOCl2 batteries, with a nominal voltage of 10.8 VDC or 14.4 VDC and a capacity of 19AH. The PTS protection circuit realizes power management and timing control, making GaugerBAT Battery Pack and PTS Programmable Timer Switch Barrier an ideal power choice for remote and explosive areas.

Key Highlights of GaugerBAT Battery Pack and PTS Programmable Timer Switch Barrier

GaugerBAT Battery Pack and PTS Programmable Timer Switch Barrier has rich performance and safety characteristics. It supports 3 or 4 Tadiran TL-5930 LiSOCl2 cells, with an external PTS protection circuit. The nominal voltage is 10.8V or 14.4V, and the battery capacity reaches 19AH. The battery enclosure has an IP67 protection grade, which can adapt to harsh outdoor environments such as rain, dust and humidity.

This product is specially designed for explosive atmosphere applications, with complete ATEX/IECEx intrinsic safety certification. The compact size of the battery enclosure (8×16×14 cm) is easy to install and deploy. It is mainly used as a matching accessory for GaugerGSM to realize low-power mode and intrinsic safe operation in hazardous areas.

Low Power Mode of GaugerBAT Battery Pack and PTS Programmable Timer Switch Barrier

When powered by GaugerBAT Battery Pack and PTS Programmable Timer Switch Barrier, GaugerGSM enters low power mode to extend battery life. The PTS periodically switches the sensor on and off: it keeps the device in sleep mode during the interval, turns it on for measurement and data transmission after the interval ends, and then turns it off again.

This mode supports two working variants: three pre-configured sleep intervals adjusted according to the measured level, or data logging and centralized transmission. The low power mode greatly prolongs the battery service life. Under typical working conditions, the battery can support up to 2 years of long-term operation, reducing maintenance frequency and operating costs.

Intrinsic Safety Certification & Application

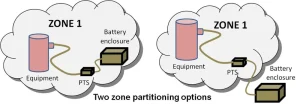

GaugerBAT Battery Pack and PTS Programmable Timer Switch Barrier has obtained ATEX/IECEx Ex II 2G, Ex ib IIB T3 certification, suitable for use in Zone 1 and Zone 2 explosive hazardous areas. It must be used with specified Tadiran TL-5930 batteries and connected to field equipment through the PTS barrier.

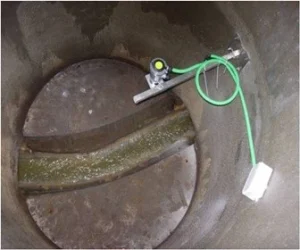

It is mainly used for battery-powered applications in explosive environments, providing safe power supply for GaugerGSM in remote sites without power. With high safety, long battery life and stable timing control, GaugerBAT Battery Pack and PTS Programmable Timer Switch Barrier becomes a reliable power solution for industrial wireless monitoring in hazardous locations.
