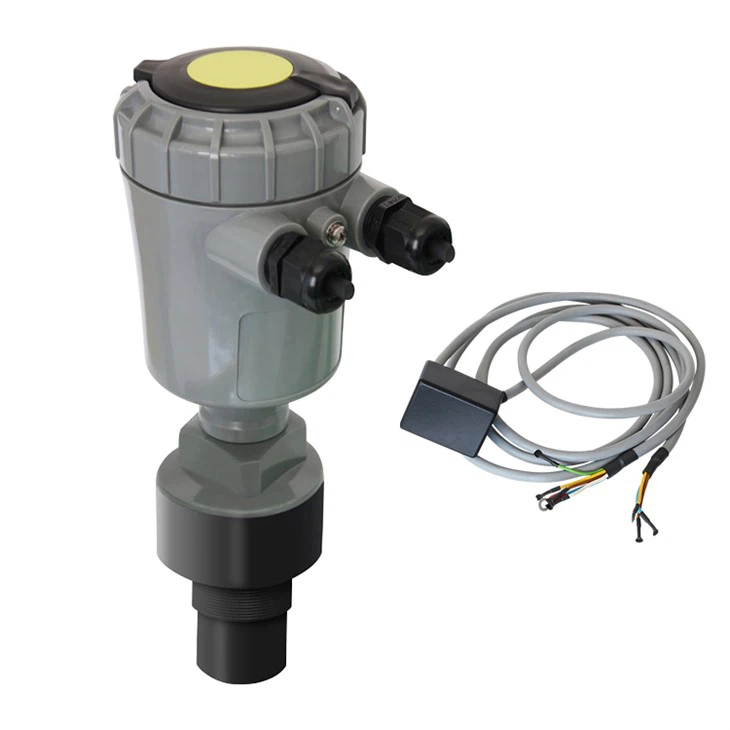

GaugerGPS Level Sensor Integrated With GSM Communications And GPS Receiver

GaugerGPS Level Sensor Integrated With GSM Communications And GPS Receiver is a professional intelligent monitoring solution specially designed for sensing‑in‑motion applications. It combines non‑contact ultrasonic measurement technology, GSM wireless communication and GPS satellite positioning in one unit, providing real‑time fuel level, volume, location, temperature and power status monitoring for mobile tanks and tanker vehicles. This all‑in‑one sensor realizes stable data transmission and instant alert push even in moving status, making it the best choice for diesel tanker management, fuel anti‑theft and mobile asset tracking.

Product Introduction of GaugerGPS Level Sensor Integrated With GSM Communications And GPS Receiver

GaugerGPS Level Sensor Integrated With GSM Communications And GPS Receiver is independently developed and produced by Solidat Applied Technologies Ltd., a leading industrial level sensor manufacturer in China. We provide high‑quality products with sufficient inventory and professional customized services to meet various mobile monitoring requirements. Global customers are welcome to contact us for factory direct quotations, enjoying reliable technical support and cost‑effective prices.

This intelligent sensor is mainly used for mobile diesel tank monitoring on tanker vehicles. It can periodically upload measurement data including fuel level, volume (in liters or gallons), real‑time GPS location, ambient temperature, power supply status and cellular signal strength. GaugerGPS Level Sensor Integrated With GSM Communications And GPS Receiver also supports instant alert notifications for preset events, helping managers grasp on‑site conditions in time and avoid abnormal fuel consumption or theft.

Core Solution Components of GaugerGPS Level Sensor

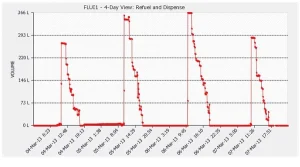

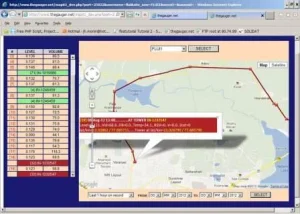

The complete monitoring system of GaugerGPS Level Sensor Integrated With GSM Communications And GPS Receiver includes two core parts: the intelligent sensor and the cloud platform. The sensor integrates an ultrasonic probe, GPS receiver and GSM transmitter, which continuously measures level, volume and location and transmits data through GPRS or SMS. The GaugerNET web monitoring platform displays real‑time location, fuel data, historical charts, alert records and authorized dispensing sites on the map. It supports user account login, email alert push and data statistics without extra software installation, bringing great convenience for remote management.

Key Highlights of GaugerGPS Level Sensor Integrated With GSM Communications And GPS Receiver

GaugerGPS Level Sensor Integrated With GSM Communications And GPS Receiver has rich and stable performance features. It supports USB port for quick configuration, monitoring and firmware upgrade. The measuring range is 0.15m to 8.0m, suitable for tanks with a capacity from 300 liters to 10000 liters. It uses PVDF corrosion‑resistant sensor and reaches IP68 protection grade, adapting to harsh outdoor environments such as rain, dust and vibration.

The sensor provides multiple data transmission methods including GPRS and SMS, and supports three levels of threshold alerts for full tank, empty tank, refueling and over‑consumption. It can measure multiple parameters such as level, distance, volume, open channel flow, totalization and temperature. With the GaugerNET cloud platform, users can achieve full‑process visualization management of tanker vehicles and fuel assets.

Applications of GaugerGPS Level Sensor Integrated With GSM Communications And GPS Receiver

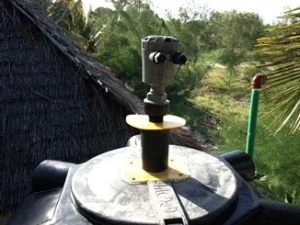

GaugerGPS Level Sensor Integrated With GSM Communications And GPS Receiver is widely used in diesel tanker real‑time monitoring and mobile liquid vessel asset tracking. It effectively improves fuel operation efficiency, reduces management costs, identifies and prevents illegal fuel theft and unauthorized use. By displaying vehicle location and fuel data in real time, it helps enterprises achieve transparent, digital and intelligent management of mobile fuel assets.
