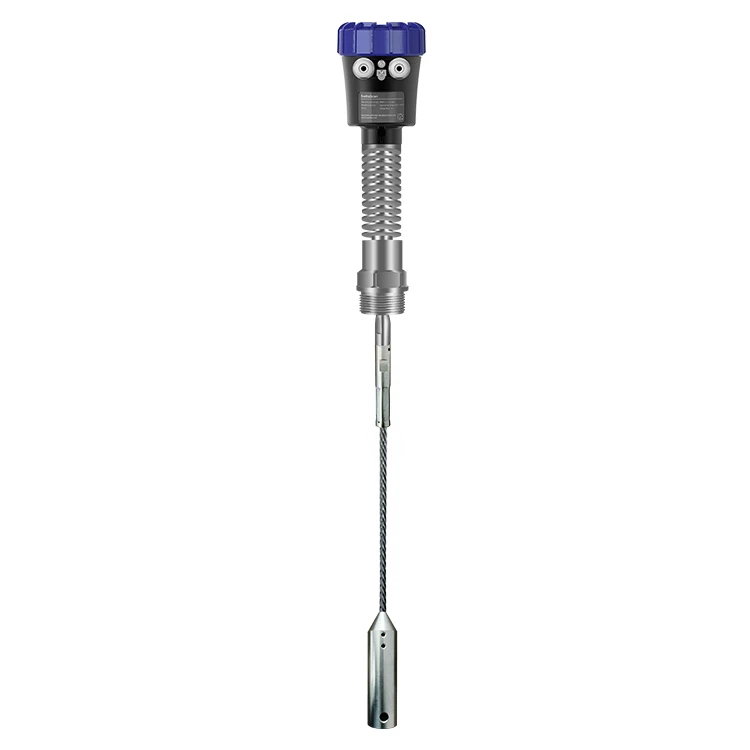

View DetailsHigh Temperature High Pressure Guided Wave Radar
Introducing our advanced high temperature high pressure guided wave radar – a high-performance level measurement solution built for extreme industrial environments. This high temperature high pressure guided wave radar delivers outstanding reliability, efficiency, and stable performance under harsh conditions.

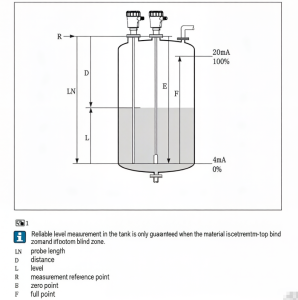

Working Principle Diagram of High Temperature High Pressure Guided Wave Radar
Reliable level measurement in the tank is only guaranteed when the material is between the top blind zone and bottom blind zone.
Key Features of High Temperature High Pressure Guided Wave Radar
Robust Construction
The high temperature high pressure guided wave radar uses durable stainless steel to withstand extreme temperatures and pressures.
High Measurement Performance
It provides accurate level measurement with excellent repeatability for stable process control.
Easy Installation & Maintenance
The high temperature high pressure guided wave radar is simple to install and maintain, reducing on-site workload.
Wide Application Compatibility
Suitable for liquid and solid measurement, especially ideal for tanks with limited access space.
Advantages of High Temperature High Pressure Guided Wave Radar
• Non-contact precision measurement avoids product contamination
• Stable operation in high temperature and high pressure environments
• High accuracy and repeatability for critical process applications
• Lower installation and maintenance costs than traditional level devices
• Real-time data output for efficient process control
• Widely used in oil & gas, chemical, food, beverage and pharmaceutical industries
Applications of High Temperature High Pressure Guided Wave Radar
The high temperature high pressure guided wave radar is widely applied in:
•Oil refining and petrochemical industry
• Food and beverage industry
• Chemical processing
• Pharmaceutical industry
• Water and wastewater treatment plants
Technical Parameters (SLDL5524)
| Item | Specification |
|---|---|
| Model | SLDL5524 |
| Application | Liquid measurement; high temperature & high pressure; complex process conditions |
| Measuring Range | Cable: 75 m / Rod: 6 m |
| Process Connection | G1 1/2A / G2A / 1 1/2 NPT / Flange |
| Probe Material | SS304, SS316L / Ceramic |
| Process Temperature | -40℃ ~ 150℃ |
| Measuring Accuracy | ±2 mm (optional ±0.5 mm) |
| Process Pressure | -0.1 ~ 4 MPa |
| Signal Output | 4–20 mA/HART (2‑wire/4‑wire), Profibus PA, Foundation Fieldbus, Modbus, GPRS/CDMA, Bluetooth |
Contact us today to learn more about our innovative high temperature high pressure guided wave radar and how it can optimize your industrial processes.
