Radar Level Meter

We are proud to launch our radar level meter – a high‑precision device for accurate and reliable liquid level measurement. This radar level meter is designed to optimize your process performance while ensuring complete safety and stability.

Working Principle of the Radar Level Meter

The radar level meter emits C‑band microwave pulses that travel at the speed of light and reach the surface of the measured medium. Part of the energy is reflected back and received by SoltaScan. The time interval between transmitted and received pulses is proportional to the distance from the antenna to the medium surface, enabling accurate distance and level calculation.

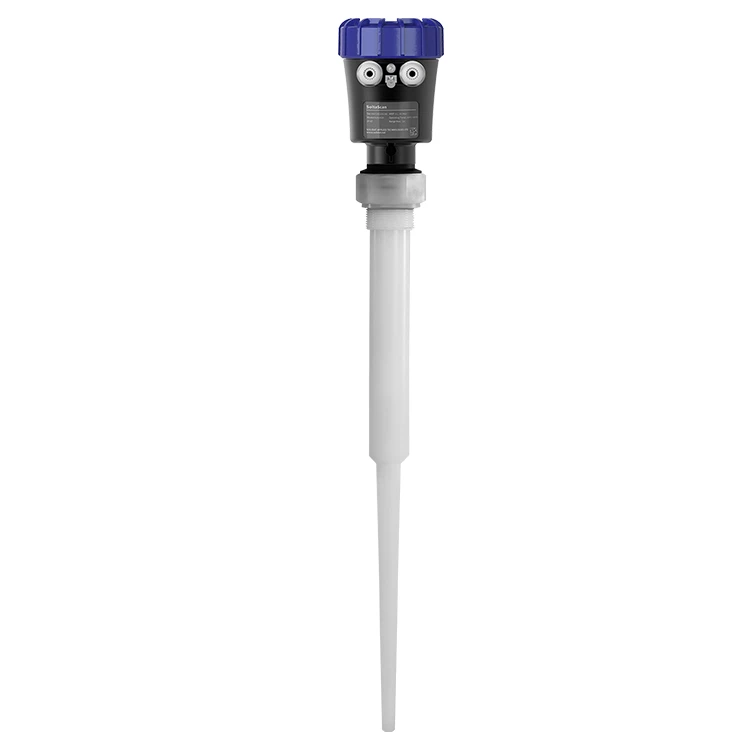

Our series includes SLDL5215 rod type and SLDL5216 horn type radar level meter models.

Installation Guidelines for the Radar Level Meter

•Frequency: 6.3 GHz

• Installation position: on the container or symmetry axis

• Keep a safe distance between the radar level meter and the container wall

• Low‑frequency radar: at least 500 mm away from the container wall

Key Features of the Radar Level Meter

Advanced Performance

The radar level meter uses cutting‑edge radar technology to improve measurement accuracy. High‑precision sensors deliver stable and dependable readings.

User‑Friendly Operation

The radar level meter features an intuitive interface for easy operation and remote access for real‑time monitoring from any location.

Strong Anti‑Interference

Advanced signal processing effectively eliminates interference waves for stable continuous measurement. One‑click false echo learning ensures accurate readings even with multiple interfering echoes.

Model Advantages

• SLDL5215: Integrated sealed antenna, protection class IP68

• SLDL5216: Suitable for high‑temperature applications up to 800℃ (with high‑temperature isolation waveguide)

Easy Commissioning

The radar level meter supports quick setup without filling or emptying the tank. Measurement can be achieved by setting just two parameters.

Rich Communication

The radar level meter supports HART, Modbus, Profibus PA, Foundation Fieldbus, GPRS/CDMA remote, and Bluetooth.

Benefits of the Radar Level Meter

• Accurate measurement ensures efficient control and reduces downtime
• Non‑intrusive design eliminates product contamination and lowers operating costs
• Real‑time monitoring provides precise level data
• Easy installation and maintenance save time and cost

Applications of the Radar Level Meter

The radar level meter is widely used in:

•Oil and gas: Tank level monitoring in storage facilities

• Chemical manufacturing: Level control in reactors and storage tanks

• Food and beverage: Level measurement in processing tanks

Technical Parameters (SLDL5215)

Our radar level meter offers superior quality and reliability to fulfill all your level measurement needs, streamline operations, and improve overall efficiency.
