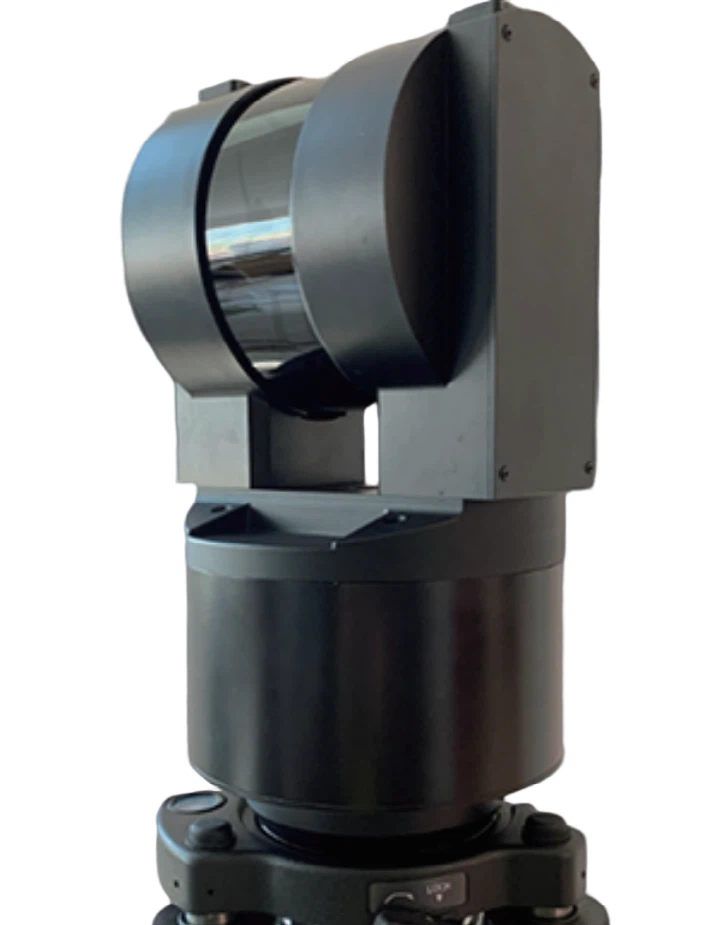

SLDL 6300 Laser Coal Scanner

The SLDL 6300 Laser Coal Scanner is a high‑precision 3D laser scanning system designed for bulk material inventory, volume measurement, stockpile modeling and silo monitoring in coal yards, power plants, steel mills and mines. Built with industry‑leading high‑frequency laser sensors and 360° full‑view scanning capability, the SLDL 6300 Laser Coal Scanner delivers exceptional accuracy, fast scanning speed and stable remote operation. As a professional 3D laser inventory solution from Solidat Applied Technologies Ltd., the SLDL 6300 Laser Coal Scanner replaces manual measurement with intelligent digital scanning, greatly improving efficiency, safety and data reliability for bulk material management. With ultra‑long measuring range, high angular precision and compact rugged design, the SLDL 6300 Laser Coal Scanner is widely used for coal pile volume calculation, 3D yard digitalization, structural scanning and legal metering container calibration.

Key Features of SLDL 6300 Laser Coal Scanner

The SLDL 6300 Laser Coal Scanner integrates advanced laser measurement and pan‑tilt control technology to support high‑performance 360° horizontal scanning. It offers horizontal angle accuracy up to 0.01°, vertical angle accuracy of 0.09°, and point measurement precision within 2 cm, ensuring reliable data output for critical inventory tasks. The SLDL 6300 Laser Coal Scanner supports a maximum measuring range of 120 meters under 10% reflectivity conditions, making it suitable for large coal sheds, open yards and high silos.

Weighing only 3.8 kg including the pan‑tilt unit, the SLDL 6300 Laser Coal Scanner features a lightweight and compact structure ideal for suspended ceiling installation. A full 360° scan can be completed in just 2–4 minutes, greatly improving measurement efficiency. The scanner uses a Class 1 eye‑safe laser with 905 nm wavelength, ensuring safe operation for on‑site personnel. With IP67 ingress protection and a wide operating temperature range from -40°C to 60°C (and up to 80°C for specific configurations), the SLDL 6300 Laser Coal Scanner maintains stable performance in harsh industrial environments.

Technical Advantages of SLDL 6300 Laser Coal Scanner

The SLDL 6300 Laser Coal Scanner provides outstanding advantages for bulk material measurement:

• 360° full horizontal scanning with 0.01° high angle accuracy
• 120 m long measuring range for large‑scale coal yards and silos
• Point accuracy ≤ 2 cm and volume error < 0.5%
• High point capture rate up to 20,000 points per second
• Lightweight 3.8 kg design for easy suspended installation
• Fast full scan within 2–4 minutes
• IP67 protection and wide temperature resistance
• Class 1 eye‑safe laser for safe daily use
• Support for both manual and automatic scanning modes
• Remote control via PC software for one‑click 3D data acquisition

These advantages make the SLDL 6300 Laser Coal Scanner a top choice for automated inventory management in coal, mining, power and steel industries.

Industry Applications of SLDL 6300 Laser Coal Scanner

The SLDL 6300 Laser Coal Scanner serves four core industrial applications:

Stockpile Volume Calculation and Change Analysis

The scanner captures full 3D data of coal piles and automatically calculates volume, weight and inventory changes, supporting real‑time decision‑making.

Digitalization & 3D Modeling of Coal Yards

It builds high‑precision digital surface models of coal yards, realizing visualized, digital and intelligent yard management.

3D Scanning of Structures & Earthwork Volume Measurement

The SLDL 6300 Laser Coal Scanner supports structural scanning, terrain mapping and earthwork volume calculation for engineering projects.

Capacity Calibration of Hoppers & Legal Measurement Containers

It provides high‑precision calibration for hoppers, bins and legal metering containers to ensure measurement compliance.

Stockpile Volume Calculation and Change Analysis

Digitalization & 3D Modeling of Coal Yards

3D Scanning of Structures & Earthwork Volume Measurement

Capacity Calibration of Hoppers & Other Legal Measurement Containers

Why Choose SLDL 6300 Laser Coal Scanner

For power plants, steel mills, coal mines and bulk storage facilities, accurate inventory measurement is essential. The SLDL 6300 Laser Coal Scanner eliminates manual errors, reduces labor risks and improves automation levels. Its networking capability allows multiple scanners to work together via LAN or wireless connection, while the control software automatically schedules scanning tasks without manual intervention.

Solidat Applied Technologies Ltd. is a leading manufacturer and supplier of the SLDL 6300 Laser Coal Scanner in China, providing stable quality, in‑stock supply, customized solutions and factory direct pricing. If you need a reliable, high‑precision 3D laser scanning solution for coal and bulk material inventory, the SLDL 6300 Laser Coal Scanner is your ideal choice.

Technical Specifications of SLDL 6300 Laser Coal Scanner
