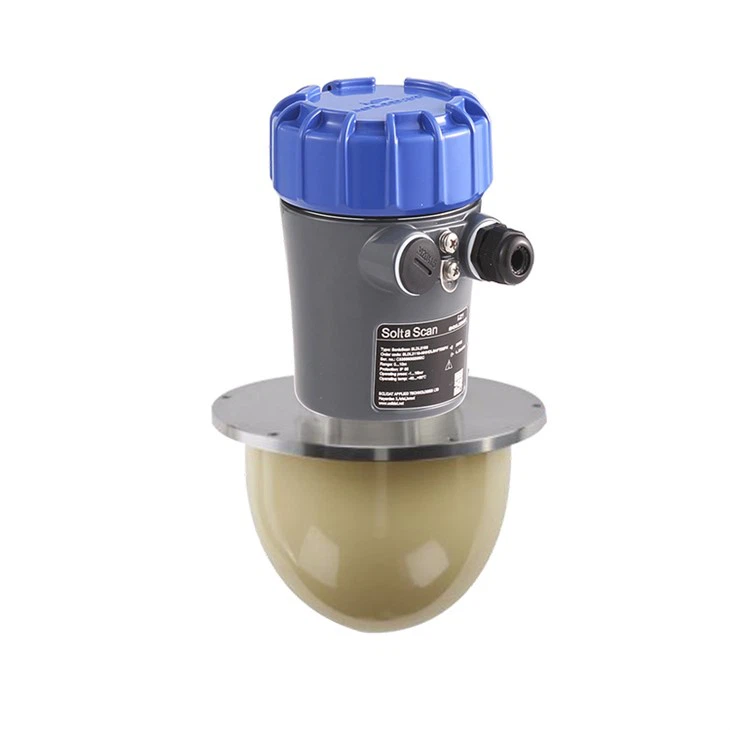

SLDL5360 3D Multi Point Scanning Radar
The SLDL5360 3D Multi Point Scanning Radar is a cutting‑edge industrial 3D radar level transmitter designed for high‑precision bulk material level measurement, volume calculation and inventory monitoring. Adopting advanced 120–140GHz high‑frequency radar technology and multi‑point rapid scanning architecture, the SLDL5360 3D Multi Point Scanning Radar breaks through the limitations of traditional single‑point radar, realizing efficient environmental perception, high‑speed data collection and stable 3D imaging. With strong signal penetration, fast scanning speed and excellent anti‑interference performance, the SLDL5360 3D Multi Point Scanning Radar provides reliable measurement solutions for silos, stockpiles, coal yards, ash silos and bulk storage facilities in harsh industrial environments. As a flagship product from Solidat Applied Technologies Ltd., the SLDL5360 3D Multi Point Scanning Radar combines high performance, durability and ease of use to support intelligent digital management of industrial inventory.
Technical Advantages of SLDL5360 3D Multi Point Scanning Radar
The SLDL5360 3D Multi Point Scanning Radar is driven by high‑frequency 120–140GHz radar signals, featuring fast transmission speed and low signal attenuation. This high‑frequency design enables the SLDL5360 3D Multi Point Scanning Radar to complete scanning tasks in an extremely short time, with a scanning cycle adjustable from 1 to 30 seconds. Combined with advanced data processing algorithms, the device greatly improves measurement efficiency compared with traditional radar products.
The SLDL5360 3D Multi Point Scanning Radar supports up to 40 scanning points, enabling full coverage of material surfaces and accurate reconstruction of 3D material profiles. It can detect the highest point, lowest point and average level simultaneously, providing comprehensive data for volume and weight calculation. With a measuring range from 30m to 70m, the SLDL5360 3D Multi Point Scanning Radar adapts to large‑scale silos, open stockpiles and high‑storage warehouses, meeting diverse measurement requirements.
Key Features of SLDL5360 3D Multi Point Scanning Radar
The SLDL5360 3D Multi Point Scanning Radar offers outstanding features for industrial applications:
•120–140GHz high‑frequency radar with strong penetration and low attenuation
• 40 scanning points for full‑coverage 3D material profile detection
• Measuring range from 30m to 70m for large‑scale storage scenarios
• Scanning cycle adjustable between 1–30 seconds for high efficiency
• Volume measurement accuracy ≤5% for reliable inventory data
• Non‑contact measurement, unaffected by dust, steam, high temperature or corrosion
• IP67 industrial protection grade for harsh environments
• Wide operating temperature range from -40°C to +70°C
• Explosion‑proof certification Ex ia IIC T200℃ 90℃ Da for hazardous areas
• Multiple output signals: 2‑channel RS485, 4–20mA, Bluetooth
• Compact structure with 295mm overall dimension for easy installation
These professional features make the SLDL5360 3D Multi Point Scanning Radar a preferred choice for modern industrial level measurement and inventory management.
Industry Applications of SLDL5360 3D Multi Point Scanning Radar
The SLDL5360 3D Multi Point Scanning Radar is widely used in multiple industries for bulk solid material measurement:
•Coal mines, coal yards and power plant coal silos
• Cement plants for raw meal, clinker and fly ash silos
• Metallurgical plants for ore, powder and bulk material storage
• Chemical industry for particle and powder material silos
• Grain depots and agricultural bulk storage facilities
• Port terminals and open stockpile volume monitoring
In all these applications, the SLDL5360 3D Multi Point Scanning Radar maintains stable performance and high accuracy, helping enterprises realize automated inventory management, reduce manual measurement risks and improve operational efficiency.
Technical Parameters of SLDL5360 3D Multi Point Scanning Radar
| Item | Specification |
|---|---|
| Model | SLDL5360 |
| Measuring Range | 30m – 70m |
| Working Frequency | 120 – 140GHz |
| Number of Scanning Points | 40 points |
| Scanning Angle | Elevation +45° |
| Scanning Cycle | 1 – 30s |
| Volume Measurement Accuracy | ≤5% |
| Power Supply | DC12 – 28V |
| Max Power Consumption | 12W |
| Operating Temperature | -40°C – +70°C |
| Protection Grade | IP67 |
| Overall Dimensions | 295mm |
| Signal Output | 2‑channel RS485 / 4–20mA / Bluetooth |
| Explosionproof Level | Ex ia IIC T200℃ 90℃ Da |
Why Choose SLDL5360 3D Multi Point Scanning Radar
For industrial users needing high‑efficiency, high‑reliability 3D level measurement, the SLDL5360 3D Multi Point Scanning Radar provides a complete solution. Its high‑frequency design, multi‑point scanning and explosion‑proof performance adapt to complex and hazardous environments. The device reduces maintenance costs, improves measurement accuracy and supports digital transformation of inventory management.
Solidat Applied Technologies Ltd. is a leading manufacturer and supplier of the SLDL5360 3D Multi Point Scanning Radar in China, providing in‑stock products, customized services, factory direct pricing and professional technical support. If you need a stable, high‑precision 3D scanning radar for bulk material measurement, the SLDL5360 3D Multi Point Scanning Radar is your ideal choice.
